OUR ROCKETS
2023-24
AGNIASTRA
AGNIASTRA, the latest innovation from thrustMIT, leveraging the power of a Cesaroni N5800 N-class commercial rocket motor. Its internal structure is meticulously crafted from Aluminium 6061, while its airframe seamlessly incorporates Carbon Fibre and Glass Fibre for optimal performance. Inside its sleek design lies a CanSat payload equipped with an infrared camera mounted on a rotating platform. This cutting-edge system maintains a real-time 3D understanding of targets by monitoring and interpreting their pose using onboard computer vision and deep learning algorithms. The avionics system comprises a unique stack-based modular flight computer that utilizes both Surface Mount Technology (SMT) and Through Hole Technology (THT) components to facilitate its mission of data logging, apogee detection, and rocket recovery.
2022-23

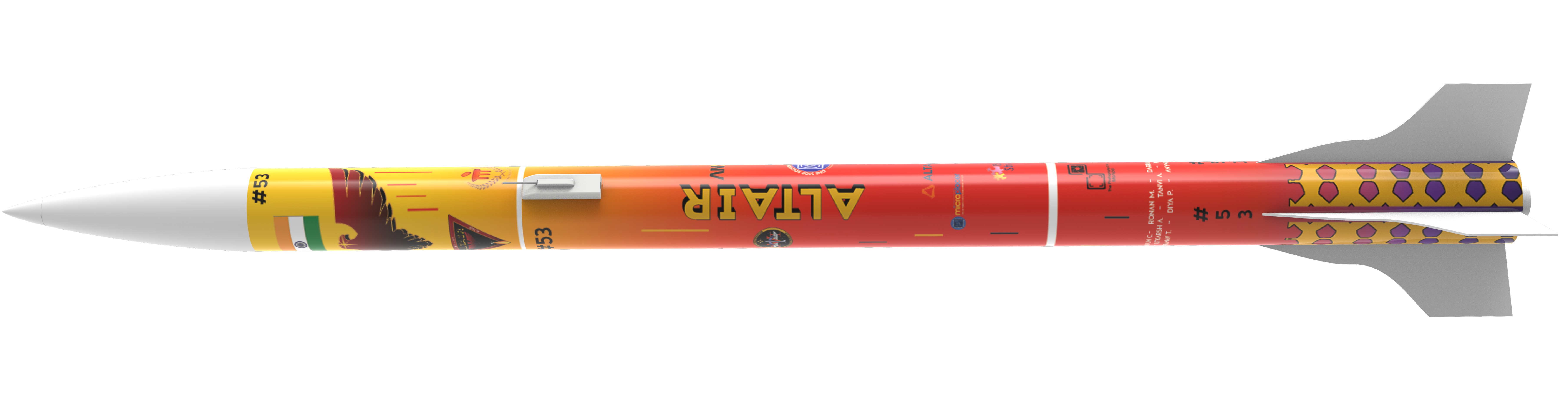

ALTAIR
ALTAIR was our 5th rocket for Spaceport America Cup 2023. It has an airframe made of Carbon Fibre and Glass Fibre. In order to minimize flow separation, the rocket has leading-edge extended fins and crankshaft-based air brakes. It was powered by a Cesaroni M3400, an M-class commercial rocket engine and reached an apogee of 3.14 km. This was our closest ever launch to an apogee of 10,331 ft.
2021-22
Rayquaza
RAYQUAZA was our 4th rocket for Spaceport America Cup 2022. With a Carbon Fibre airframe and Aluminium 6063 internal structure, it was powered by a Cesaroni M3400, an M-class commercial rocket engine and reached an apogee of 3.55 km. This was our first rocket ever to reach 10,000 ft. Rayquaza came 4th in the James Barrowman Award with an error percentage less than 0.3 %.
2020-21

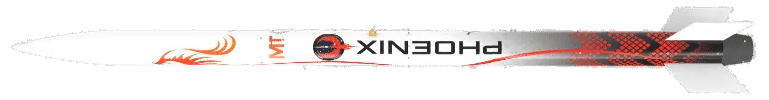

Phoenix
PHOENIX was the 3rd rocket we made and our official entry to the 2021 Spaceport America Cup. With a Carbon Fibre airframe and a Glass Fibre Avionics bay to facilitate telemetry, the rocket had an apogee of 3 Km weighing a total of 36 Kgs. Phoenix was powered by a COTS N-Class Cesaroni Pro98 Solid rocket and carried a peizo electric device in the payload.
2018-19

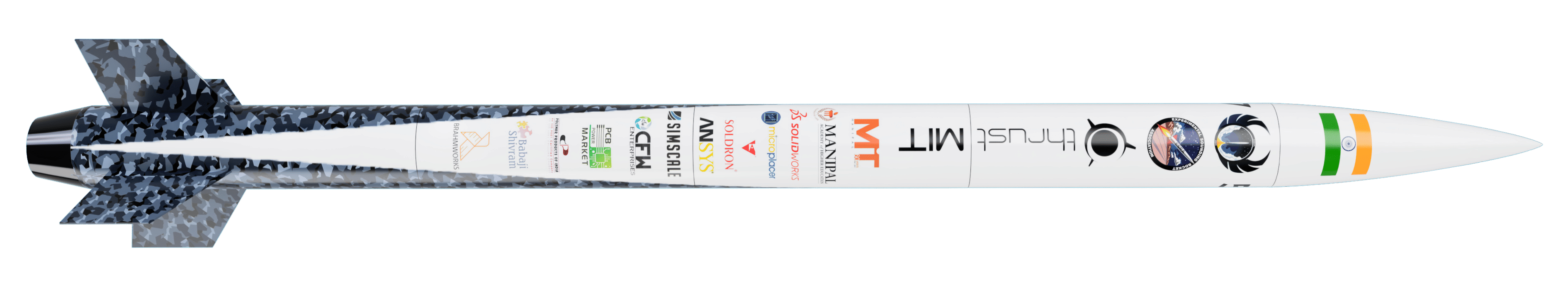

Arya
ARYA, launched in spaceport America cup 2019, was our 2nd rocket and was made entirely of carbon fibre with the weight being 24kgs and apogee 3km. It had Aluminium 6061T6 bulkheads, centring rings. Lapwing 2 was a subscale rocket used to test all the system. An in house reefing mechanism was designed to facilitate the easier recovery of the rocket.
2017-18

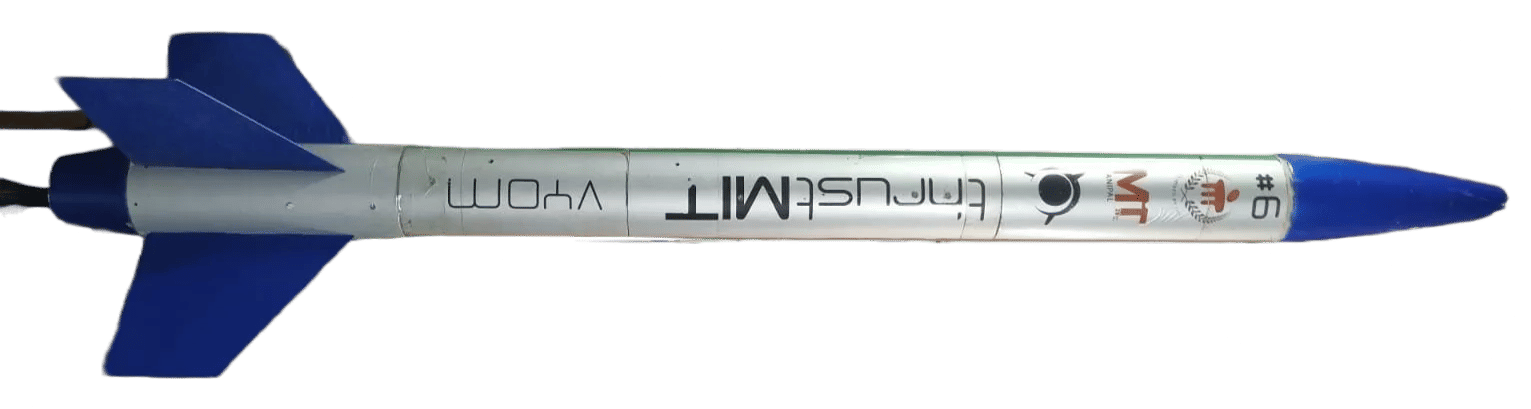

Vyom
VYOM was our first rocket and launched at Spaceport America Cup 2018. With a Glass fiber airframe, couplers and fin attachment, Aluminium 6061 T6 bulkheads, centering rings, All female mould layup of Glass Fibre and split piece moulds for nosecone and boattail, nose tip of ABS. The weight of the rocket was 26kgs and reached an apogee of 1.2km. Vyom won us the Best Debutant Award at the SA Cup 2018.
